Z45H
一、Z45H 暗桿鑄鋼閘閥介紹：
Z45H暗桿鑄鋼閘閥，替代傳統鑄鐵閥門，結構緊湊、設計合理、閥門剛性好，通道流暢、流阻系數小。型號為Z45H-10C、Z45H-16C。它的密封面采用不銹鋼和硬質合金，使用壽命長。采用柔性石墨填料、密封可靠、操作輕便靈活。驅動方式分手動、電動、氣動、齒輪傳動；結構型：彈性楔式單閘板、剛性楔式單閘板和雙閘板型式。廣泛適用于石油化工，冶金，水處理，火力發電廠等油品、水蒸汽管路上作接通或截斷管路中介質的啟閉裝置。

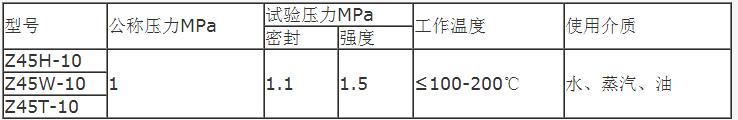

二、Z45H 暗桿鑄鋼閘閥性能參數：

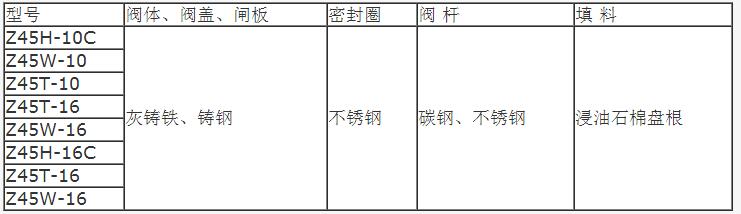

三、Z45H暗桿閘閥的零件材料：

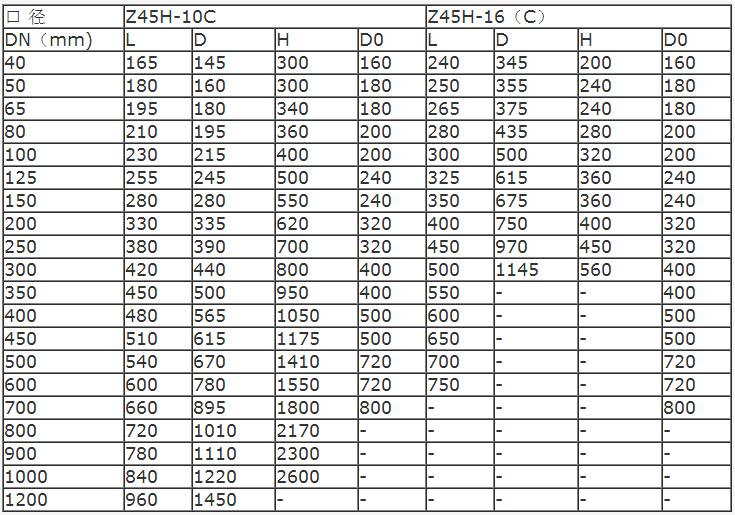

四、Z45H-10C與 Z45H-16（C）的尺寸數據：
